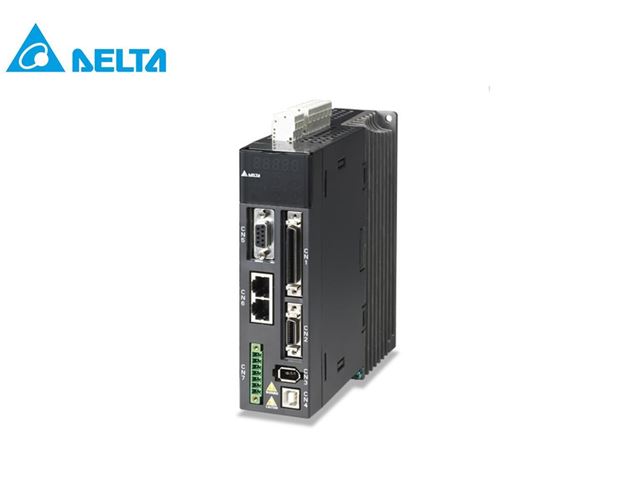

Servo drive 0.75 kw Model:ASD-A2-0743-M

Fabricant:

Delta
Délai de livraison: Contact Us

A2 Servo Drive, 0.75kW, 480V 3PH, FCL, CANopen, CAM

1708 CAD
+ -
Spécifications des produits
Brand Delta
Country of origin China
Input Voltage 3-phase380 ~ 480VAC, ±10%
Output Power 0.75(KW)
Input current 3PH(A) 2.22
Output current(A) 3.07
Encoder Type Incremental encoder: 20-bit ;Absolute encoder: 17-bit
Communication RS-232 / RS-485 / CANopen / USB / DMCNET
Control Method SVPWM
Operating Temperature (°C) 0 ~ 55 (If operating temperature is above 45ºC, forced cooling will be required)
Storage temperature(°C) -20 ~ 65
IP 20
  1. CANbus communication speed is 1M bps, in comply with CANopen DS301 standard.
  2. 3 CANmotion modes (Profile Position Mode, Interpolation Position Mode, Homing Mode) are provided for CANopen DS402 standard. Max. length of the communication cable can reach up to 40m (when using standard communication cable). Possible to achieve 4 axis update in 1msec with DVP-10MC controller.
Entrez votre propre avis fermer
  • Un produit ne peut être commenté qu'après avoir été acheté
  • Seuls les utilisateurs enregistrés peuvent saisir des avis
  • Mauvais
  • Excellent
Request For Quote
Description
  1. CANbus communication speed is 1M bps, in comply with CANopen DS301 standard.
  2. 3 CANmotion modes (Profile Position Mode, Interpolation Position Mode, Homing Mode) are provided for CANopen DS402 standard. Max. length of the communication cable can reach up to 40m (when using standard communication cable). Possible to achieve 4 axis update in 1msec with DVP-10MC controller.
Spécifications des produits
Brand Delta
Country of origin China
Input Voltage 3-phase380 ~ 480VAC, ±10%
Output Power 0.75(KW)
Input current 3PH(A) 2.22
Output current(A) 3.07
Encoder Type Incremental encoder: 20-bit ;Absolute encoder: 17-bit
Communication RS-232 / RS-485 / CANopen / USB / DMCNET
Control Method SVPWM
Operating Temperature (°C) 0 ~ 55 (If operating temperature is above 45ºC, forced cooling will be required)
Storage temperature(°C) -20 ~ 65
IP 20
