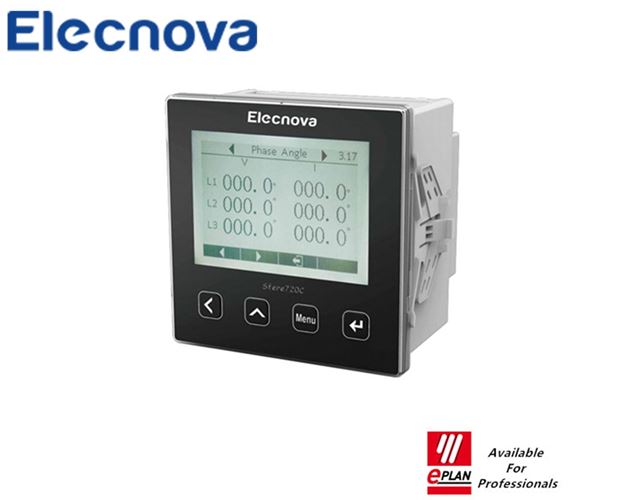

Multifunction Power Meter Model: Sfere720C

Délai de livraison: 4 Weeks

LCD display;Accuray Class0.2S;Memory 8M; Real-time measurement & Energy Metering & Power Quality monitoring

Spécifications des produits
Brand Elecnova
Country of origin China
Display Mode TFT
Accuracy V/A: 0.2%, P/Q/S/PF:0.2%, F:±0.01Hz, ±kWh: Class 0.2s, ±kvarh: Class2
Rated Input Voltage AC100V, AC380V
Frequency Range(Hz) 45 - 65
Rated Input current AC 1A, AC 5A
Auxiliary Supply Working Range: AC 80~270V 50/60Hz, DC 100~350V, Consumption≤5VA
Communication RS485, Modbus-RTU, 2-Wire, up to 38.4 kbps
Energy Pulse 1 photocoupler output, pulse width (80±20%) ms
Digital Input 2 AC wet contact inputs, Isolation: 5kVAC
Relay Outputs 2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC
Operating Temperature (°C) -25~70
Storage temperature(°C) -30 ~ 80
Relative Humidity ≤93%
Insulation ≥2kVAC
IP Front: IP64, Rear: IP20

Sfere720C is the family product of the Sfere720 power quality analyzer. It equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere720C also can be extended up to 4 externel modules in the back side of the device. In some purticular industrial spot, the analog module could transmit the 0-20mA analog signl to the Sfere720C to access into a complicated industrial control system or establish a independent energy consumption optimized system as well.

Entrez votre propre avis fermer
  • Un produit ne peut être commenté qu'après avoir été acheté
  • Seuls les utilisateurs enregistrés peuvent saisir des avis
  • Mauvais
  • Excellent
Request For Quote
Description

Sfere720C is the family product of the Sfere720 power quality analyzer. It equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere720C also can be extended up to 4 externel modules in the back side of the device. In some purticular industrial spot, the analog module could transmit the 0-20mA analog signl to the Sfere720C to access into a complicated industrial control system or establish a independent energy consumption optimized system as well.

Spécifications des produits
Brand Elecnova
Country of origin China
Display Mode TFT
Accuracy V/A: 0.2%, P/Q/S/PF:0.2%, F:±0.01Hz, ±kWh: Class 0.2s, ±kvarh: Class2
Rated Input Voltage AC100V, AC380V
Frequency Range(Hz) 45 - 65
Rated Input current AC 1A, AC 5A
Auxiliary Supply Working Range: AC 80~270V 50/60Hz, DC 100~350V, Consumption≤5VA
Communication RS485, Modbus-RTU, 2-Wire, up to 38.4 kbps
Energy Pulse 1 photocoupler output, pulse width (80±20%) ms
Digital Input 2 AC wet contact inputs, Isolation: 5kVAC
Relay Outputs 2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC
Operating Temperature (°C) -25~70
Storage temperature(°C) -30 ~ 80
Relative Humidity ≤93%
Insulation ≥2kVAC
IP Front: IP64, Rear: IP20
